J41H
OEM/ZJFV

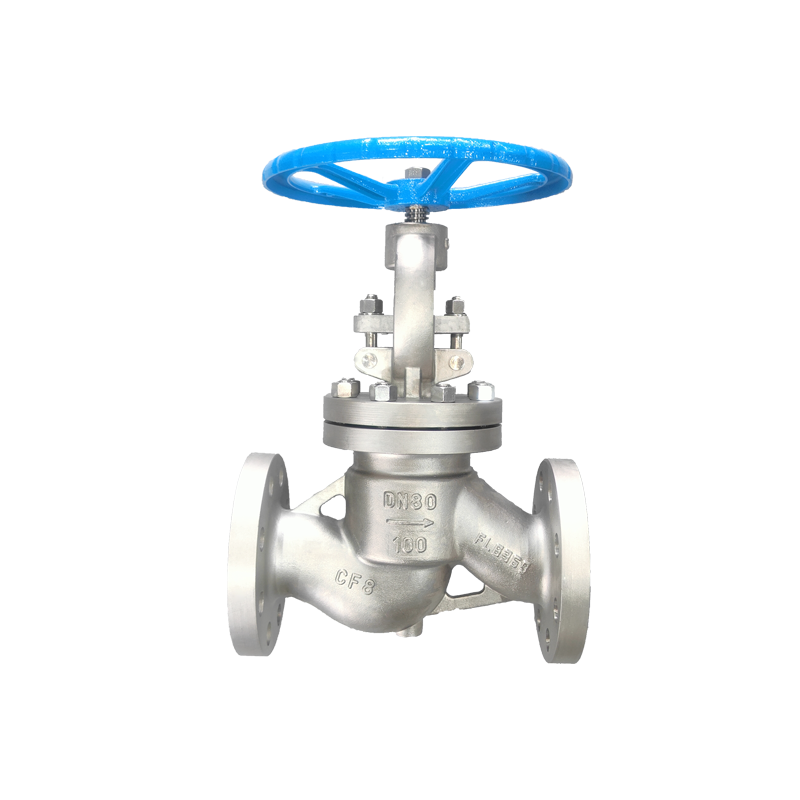

1. **Product Name**: GB globe valve (GB globe valve).
2. **Model**: J41H.
3. **Size Range**:D N80.
4. **Pressure Rating**:P N100.
5. **Temperature Grade**: -29~+425°C (the temperature range is affected by the properties of the sealing material and medium).
6. **Flange drilling**: GB standard.
7. **Test**: Housing test and seal test.
8. **Main material**CF8 (other materials available upon request).
9. **Medium**: water, oil, gas.
10. **Drive mode**: handwheel, bevel gear, pneumatic, electric.
11. **Applicable medium**: fresh water, sewage, air, steam, food, medicine, oil, alkali, salt, etc.
12. **Operation mode**: handwheel operation.
13. **Construction**: includes conventional ports, bolted bonnets/pressure sealed bonnets/welded bonnets, external threads and Y-brackets (OS&Y), clockwise closing directions, solid discs (plug-shaped, spherical/spherical, throttled), replaceable seats or integral seats, dorsal seats, etc.
14. **Applicable temperature**: -29~425°C.
15. **Acid Environment**: NACE MR0175.
16. Standards Compliance: ANSI B16.34, BS 1873.
