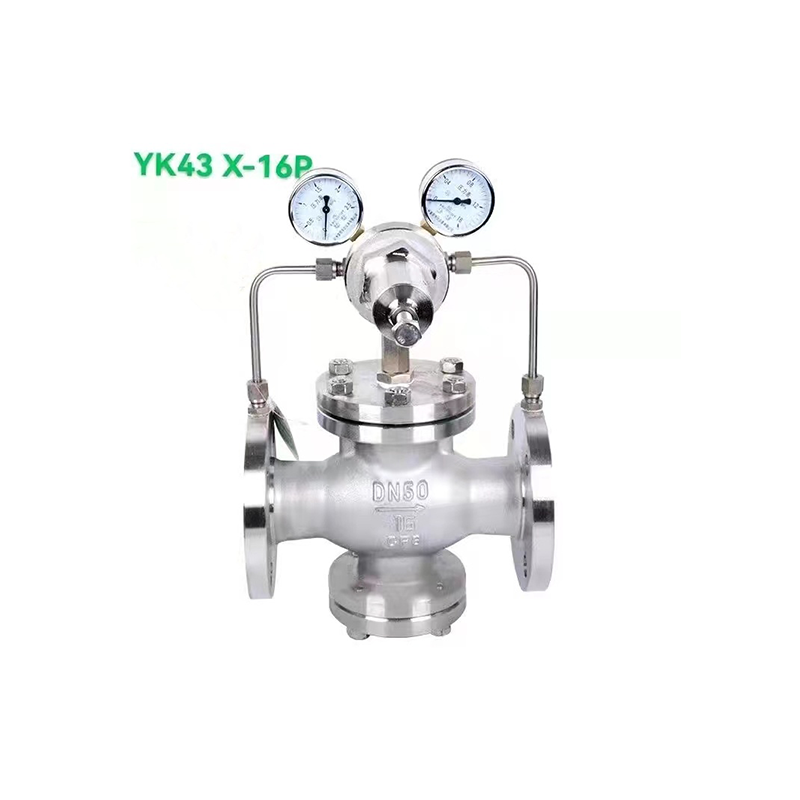

YK43X-16P
ZJFV/OEM
Stainless steel pressure reducing valve is a device used to reduce fluid pressure, widely used in pipeline systems for various media such as water, steam, and gas. The following are some typical characteristics and application scenarios of stainless steel pressure reducing valves:
1. Material and Corrosion Resistance: Stainless steel pressure reducing valves are usually made of stainless steel materials such as 304, 316, or 316L, which have good corrosion resistance and pressure resistance, and are suitable for various chemical media and industrial environments.
2. * * Working principle * *: By changing the throttling area inside the valve to reduce fluid pressure, while relying on mechanisms such as springs or diaphragms inside the valve to maintain stable outlet pressure.
3. * * Structural form * *: It can be divided into membrane type, piston type, bellows type, etc. Among them, piston type pressure reducing valves are favored due to their longer service life.
4. * * Technical Parameters * *:
-* * Maximum input pressure * *: can withstand pressures up to 350 bar.
-Export pressure control range: Adjustable range from 0.2 to 248 bar.
-Working temperature: Depending on the sealing material, it can operate within the range of -50 ℃ to+200 ℃.
-Flow coefficient Cv: The value of flow coefficient Cv may vary depending on the size and design of the valve.
5. * * Application Scenarios * *:
-Industrial piping system: used to control and stabilize the pressure in the system.
-Building Water Supply: Used for reducing pressure and stabilizing water pressure in high-rise buildings.
-Pneumatic control system: used to regulate and stabilize the pressure in the pneumatic system.
6. Installation and Maintenance: It should be installed horizontally on the pipeline for easy operation and maintenance. During installation, attention should be paid to ensuring that the flow direction of the medium is consistent with the direction indicated on the valve body, and regular inspections should be carried out to ensure its normal operation.
7. * * Product Features * *:
-Sensitivity: Made of 316L stainless steel diaphragm, it has high sensitivity.
-* * Balanced lifting valve core * *: reduces the impact of changes in inlet pressure on outlet pressure.
-* * Filter Screen * *: A 25 μ m filter screen is installed inside the inlet to protect the valve from impurities.
8. * * Selection and Ordering * *: When selecting a stainless steel pressure reducing valve, it is necessary to consider parameters such as diameter, operating medium, pre valve pressure, post valve pressure, flow rate, etc., and provide relevant technical information to ensure accurate selection.
In summary, stainless steel pressure reducing valves have been widely used in the industrial and construction fields due to their corrosion resistance, high pressure resistance, and stable pressure reducing performance.
