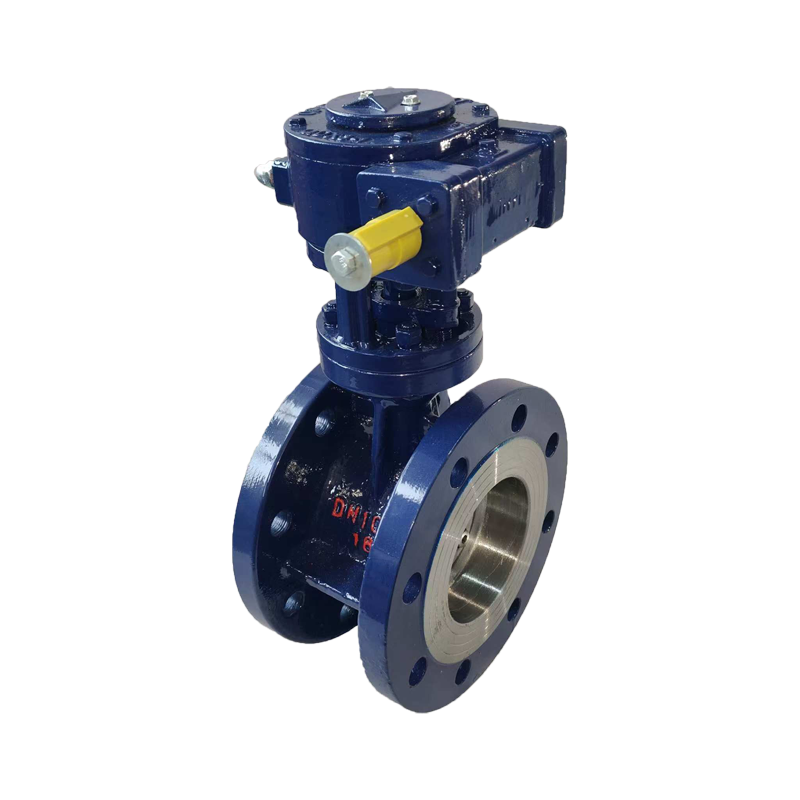

The technical specifications of the Turbine Hard Sealed Cast Steel Butterfly Valve are as follows:
1. * * Connection form * *: flange type
2. * * Structure * *: Triple eccentric seal
3. * * nominal diameter * *: DN100
4. * * nominal pressure * *: PN16
5. * * Working temperature * *: -25 ° C to 200 ° C
6. * * Sealing surface material * *: Metal hard seal
7. * * Application * *: Industrial Water
8. * * Features * *:
-Adopting a three eccentric sealing structure, the valve seat and butterfly plate have almost no wear, and have increasingly tight sealing function
-The sealing ring is made of cast steel, which has the dual advantages of hard metal sealing and elastic sealing. It has excellent sealing performance, corrosion resistance, and long service life at low and high temperatures
-The large butterfly board adopts a quilted frame structure, which has high strength, large overcurrent area, and low flow resistance
-Bidirectional sealing function, not limited by the flow direction of the medium or the spatial position during installation, can be installed in any direction
-The drive device can be installed in multiple positions (rotated 90 ° or 180 °), making it convenient for users to operate
In addition, the butterfly valve complies with the valve pressure testing standard of the national standard GB/T13927-92.
