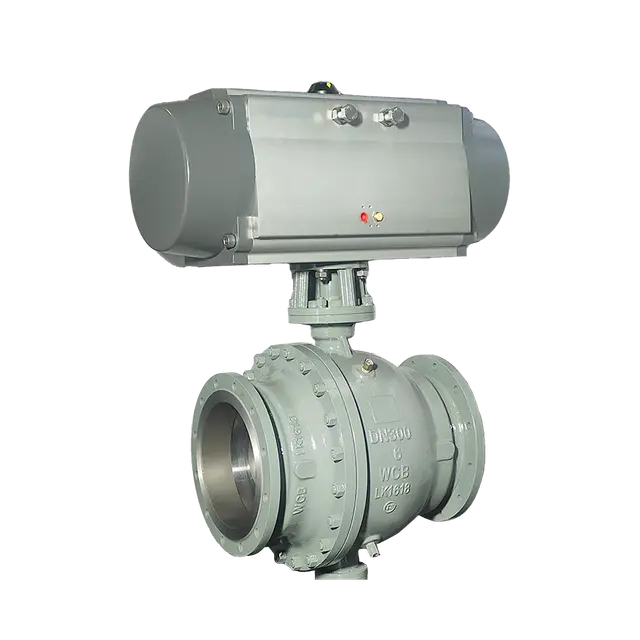

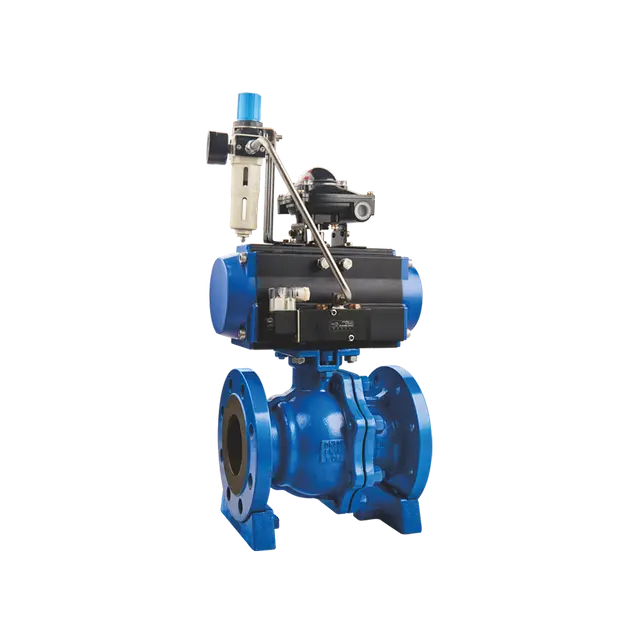

A pneumatic ball valve is an essential control component used in various industrial processes to regulate fluid flow. Actuated by compressed air, this valve type operates a spherical disc with a central bore to control the passage of liquids or gases. The simplicity, reliability, and quick response time of pneumatic ball valves make them a favored option in manufacturing, chemical processing, water treatment, and HVAC systems.
What sets pneumatic ball valves apart is their mechanical design. The actuator receives air pressure and rotates the ball inside the valve body, allowing or blocking flow. While these valves are prized for automation capabilities, a critical question arises: Are pneumatic ball valves suitable for high-temperature applications? To answer this, we must explore the construction materials, design considerations, limitations, and industry use cases where temperature extremes are a factor.
The capability of a pneumatic ball valve to withstand high temperatures largely depends on its materials of construction. Most pneumatic ball valves are made of stainless steel, carbon steel, brass, or PVC. Of these, stainless steel and carbon steel offer the best heat resistance and are commonly used for high-temperature applications.
| Material | Max Operating Temp (°C) | Suitable for High Temp? |
|---|---|---|
| Stainless Steel | 500–600°C | Yes |
| Carbon Steel | 400–500°C | Yes |
| Brass | 200–250°C | Limited |
| PVC/Plastic | 60–90°C | No |
Furthermore, the sealing materials—like PTFE (Teflon), graphite, or Viton—must also endure the elevated temperatures. For instance, graphite seats can handle temperatures up to 538°C, making them ideal for extreme environments. Meanwhile, Teflon seats start to degrade above 200°C, which limits their application range.
Thus, a pneumatic ball valve's ability to withstand heat doesn't rely solely on the valve body but also on the internal components, which must be carefully chosen for high-temperature performance.
Designing pneumatic ball valves for high-temperature environments requires more than just heat-resistant materials. Engineers and manufacturers also consider thermal expansion, actuator compatibility, and insulation requirements.
Thermal Expansion: Materials expand when heated. High-temperature operations may affect valve tightness and torque requirements. A poorly designed valve could jam or leak due to differential expansion between the ball and the seat.
Actuator Durability: Pneumatic actuators typically operate within standard industrial temperatures (−20°C to 80°C). For higher temperatures, a heat shield or an extended stem design is required to separate the actuator from the heat source.
Fire-Safe Designs: Some high-temp applications demand fire-tested or fire-safe ball valves, which continue to operate or at least maintain a seal in case of fire. These valves use metal-to-metal backup seating for added security.
Blowout Prevention: In high-pressure, high-temperature settings, valves are also equipped with anti-blowout stems to prevent internal components from being ejected.
Without addressing these design concerns, a pneumatic ball valve, even one made of high-grade materials, may fail in service. Hence, engineering precision is essential when installing these valves in demanding thermal environments.
Pneumatic ball valves are used in a wide range of high-temperature applications, provided they meet the required specifications. Some notable examples include:
Petrochemical Plants: Processes like cracking and distillation involve fluids at several hundred degrees Celsius. Stainless steel pneumatic valves with graphite seats are commonly used here.
Steam Systems: High-pressure steam, especially in power generation, requires valves that can resist thermal shock and maintain a seal under pressure.
Metal Processing: Industries involving furnaces or molten materials rely on valves that can tolerate not just heat, but also aggressive chemicals.
Food and Beverage (Sterilization Systems): Although not extreme in temperature, CIP (Clean-In-Place) and SIP (Sterilize-In-Place) systems still demand resistance to heat and chemicals.
Despite these applications, it’s worth noting that not all pneumatic ball valves are suitable for these conditions. Customization and precise specification are key when selecting a valve for high-temperature environments.
No. Only those specifically designed with heat-resistant materials and engineered components can safely operate at such temperatures. Standard PTFE-seated valves, for example, are not suitable beyond 200°C.
Yes. Pneumatic actuators must be thermally protected, usually through an extended bonnet, heat shield, or cooling fin. Otherwise, actuator seals may degrade or air control may become unreliable.
You can identify it by checking its technical datasheet. Look for temperature limits, seat materials (e.g., graphite), and certifications such as API 607 for fire safety.
Yes, if the materials expand excessively or the seats degrade, leakage can occur. Proper seat selection and thermal tolerance testing help mitigate this risk.
A high-temperature-rated valve resists heat under normal operating conditions, while a fire-safe valve must maintain a seal during and after exposure to open flame. Both are vital in hazardous environments, but they serve different functions.
To summarize, pneumatic ball valves can be suitable for high-temperature applications—but only if they are designed and constructed with the appropriate materials and engineering adaptations. Standard commercial-grade valves are not adequate for high-heat environments. Factors such as body material, seat composition, actuator protection, and valve design must be aligned with the specific application needs.
Whether you're dealing with high-pressure steam, corrosive chemicals at elevated temperatures, or thermal cycling in process control systems, a properly specified pneumatic ball valve can provide reliable and long-lasting service. However, careful evaluation and technical consultation are essential before making a selection.
Investing in the right pneumatic ball valve for your high-temperature system isn’t just about performance—it’s also about safety, compliance, and long-term cost-effectiveness.
