Ball valves are crucial in controlling the flow of liquids, gases, and vapors across many industries. Whether in plumbing, chemical processing, or oil and gas, understanding their functions is essential.
In this post, we'll explore the different types of ball valves, their parts, and the benefits they offer. You'll also learn how to choose the right ball valve for your needs.
Ball valves are commonly used to control the flow of liquids, gases, and vapors in various systems. They consist of a ball with a central hole that can rotate to either allow or block the flow. When the hole aligns with the flow path, the valve is open, letting fluid pass through. When it's perpendicular to the flow, the valve shuts off the passage, blocking the flow completely.
This quarter-turn operation makes ball valves quick and easy to operate. Just a 90-degree turn of the handle can open or close the valve efficiently, making them ideal for situations that require rapid shut-off.
Ball valves have several important parts: the ball, shaft, and housing. The ball is the heart of the valve, and it has a central hole that regulates fluid flow. The shaft connects the ball to the control mechanism, which helps rotate the ball. The housing, or valve body, contains and protects all the internal components.
These valves are often used in both shut-off and flow control applications. Their simple mechanism and reliable function make them a popular choice for managing fluid systems.
The valve body, or housing, is the external shell that holds all the internal components of the ball valve. It provides a secure, sealed environment to ensure proper flow control. The materials used for valve bodies vary and include metals like stainless steel, thermoplastics, and metal-lined plastics. These materials offer durability and resistance to corrosion.
There are different body designs:
● One-piece: A single cast body, often cost-effective but not easy to service.
● Two-piece: Divided into two parts, providing easy maintenance but needing disassembly.
● Three-piece: This design allows easy replacement of parts without removing the entire valve from the pipeline.
The ball inside the valve is key to controlling fluid flow. It can be solid or hollow, and this affects the flow rate. A solid ball maintains a steady, consistent flow, while a hollow ball allows for higher flow rates but may cause turbulence. The ball’s bore alignment with the flow path is crucial: when aligned, the valve opens, and when perpendicular, it closes. This simple mechanism allows for reliable shut-off and flow regulation.
The shaft connects the ball to the valve's control mechanism, enabling the ball to rotate. This rotation is what opens or closes the valve. The shaft also includes sealing components like O-rings and packing to prevent fluid from leaking around it. Seals are critical for ensuring the valve operates smoothly without leakage, even under high pressure.
The bonnet serves as a protective covering for the shaft and its packing. It's essential for high-pressure and high-temperature applications where additional protection is needed. The bonnet helps secure the shaft and also prevents contaminants from interfering with the valve's operation.
The valve seats are made from soft materials such as PTFE, elastomers, or reinforced materials like PEEK and graphite. These seats create a tight seal around the ball when the valve is closed, ensuring leak-free operation. They are vital for preventing fluid leakage in high-pressure systems and ensuring the valve performs as expected in various industries.
Seals, gaskets, and packing materials are used to prevent leakage between the valve's internal and external surfaces. These components are made from various materials like PTFE, rubber, and graphite. The quality of these sealing materials is essential for ensuring long-term valve performance and compliance with safety regulations.
A one-piece ball valve has a single, solid body design. It's typically cast in one piece, making it simple and cost-effective. However, this design makes maintenance more difficult, as the valve cannot be disassembled for cleaning or repairs. One-piece valves are ideal for applications where ease of use and low cost are priorities, but they may not be suitable for systems requiring frequent maintenance.

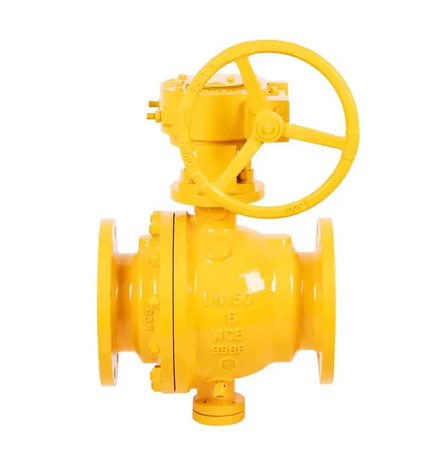

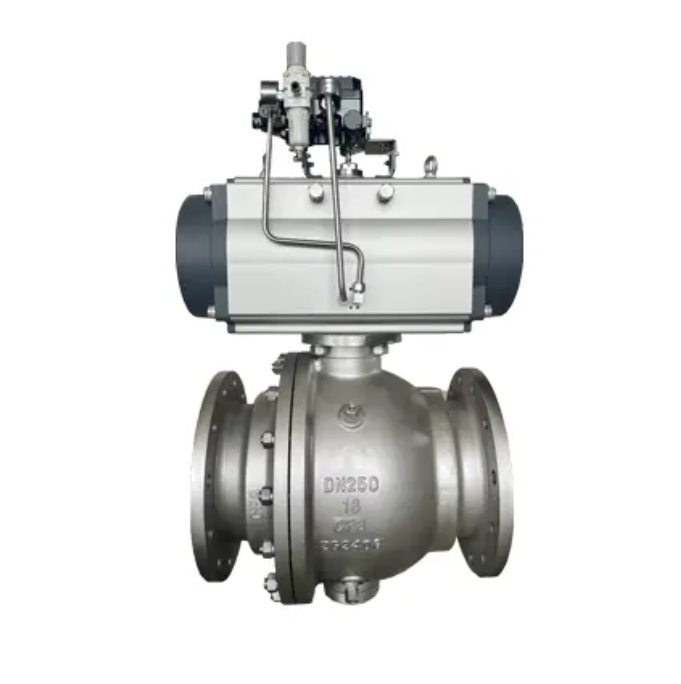

Split body ball valves are designed with either two or three pieces that fit around the ball. This configuration allows for easy disassembly, cleaning, and part replacement. The two-piece design is commonly used for simpler applications, while the three-piece design offers more flexibility for maintenance and service. These valves are great for industries where regular cleaning or in-line maintenance is required.
The top-entry design makes it easy to access the internal components of the valve by removing the bonnet from the top. This makes maintenance and repairs simpler, without the need to remove the entire valve from the pipeline. Top-entry ball valves are often used in high-pressure systems and are beneficial when quick serviceability is a priority.
Floating ball valves feature a ball that is suspended and can move laterally when the valve is closed. The ball is held in place by two seats that help maintain a tight seal. This design is commonly used in low- to medium-pressure systems, where fluid pressure helps seal the valve. Floating ball valves are simple, reliable, and ideal for applications where flow control is needed but without extreme pressure.
Vented ball valves are designed to release trapped gases from the valve when it is closed. These valves have small holes in the ball, which allow gases to escape, preventing pressure build-up. Vented ball valves are essential in systems that handle volatile or pressurized gases, such as cryogenic and compressed air systems.
Cavity-filled ball valves are designed to fill the space between the ball and the valve body, preventing the accumulation of debris or contaminants. This makes them ideal for industries that require high hygiene standards, such as food and pharmaceuticals. The cavity-filled design ensures cleaner operation and reduces the risk of contamination in sensitive processes.

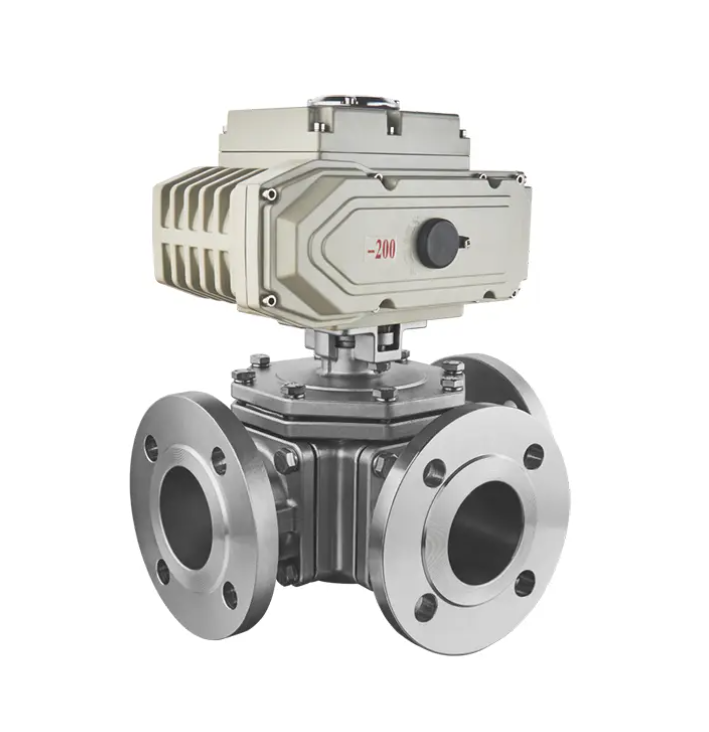

Multi-port ball valves have more than two ports, allowing fluid to flow in multiple directions. These valves are often used in complex piping systems where flow needs to be diverted or combined. Three-way and four-way ball valves are common examples. These valves are perfect for applications where flexibility in flow direction is needed, such as blending or diverting fluids in industrial systems.
Ball valves are commonly used in both residential and commercial plumbing systems. They provide reliable shut-off and flow control in water pipes. Whether it’s for faucets, water heaters, or irrigation systems, ball valves ensure smooth operation and easy shut-off. Their simple quarter-turn design makes them easy to operate, allowing for quick and secure control of water flow.
In HVAC systems, ball valves help control the flow of refrigerants and cooling agents. They play a crucial role in heating and cooling processes, helping maintain optimal system efficiency. In industrial settings, ball valves are used for fluid flow control in systems like chillers, compressors, and cooling towers. Their durable design ensures reliable performance in demanding environments.
Ball valves are essential in chemical processing plants, where they handle hazardous and corrosive fluids. These valves are made from specialized materials such as stainless steel or plastic composites to resist damage from aggressive chemicals. They ensure a secure and leak-free operation in chemical reactors, piping systems, and storage tanks, where safety and precision are paramount.
The oil and gas industry relies on ball valves for high-pressure pipeline systems and petroleum processing. These valves are used to control the flow of crude oil, natural gas, and refined products. Given the high pressure in these systems, ball valves must provide reliable performance and leak-free operation to prevent environmental hazards and ensure the safety of operations.
● Quick and Easy Operation
Ball valves use a simple quarter-turn mechanism, making them easy to operate. A 90-degree turn is all it takes to open or close the valve, which makes them ideal for situations requiring fast action.
● Excellent Shut-Off Capabilities
Ball valves provide a reliable, tight seal when fully closed. This ensures that no fluid or gas can leak, which is essential in systems requiring secure shut-off functionality.
● Low Pressure Drop and Minimal Friction
When fully open, ball valves cause minimal resistance to fluid flow. This reduces pressure drops and friction, improving system efficiency and reducing energy costs.
● Durability Across a Wide Range of Temperatures and Pressures
Ball valves can handle both high and low temperatures, as well as high-pressure environments. Their sturdy construction ensures they perform well in extreme conditions without deteriorating quickly.
● Versatility in Fluid Handling
Ball valves are versatile and can manage a variety of fluids, including gases, liquids, and even slurries. This makes them suitable for a wide range of applications across industries like plumbing, HVAC, and chemical processing.
Ball valves are essential for efficient fluid control in various industries. They offer quick operation, excellent shut-off capabilities, and low pressure drops. When choosing the right ball valve, consider factors like valve type, material, and application requirements. Selecting the proper valve ensures system reliability and optimal performance. Take the time to evaluate your needs before making a decision. If you need further advice, don't hesitate to contact Zhongjian Valve to help you make the best choice for your needs.
A: Ball valves use a spherical ball to control flow, offering a quick shut-off with minimal leakage. Gate valves, on the other hand, use a sliding gate to control flow, making them better for precise flow regulation but slower and prone to leaks over time.
A: Ball valves are not ideal for throttling applications. Using them for throttling can lead to erosion of the valve seats due to the high pressure on the soft materials.
A: Materials like stainless steel and metal-seated ball valves are ideal for high-temperature applications due to their durability and resistance to heat.

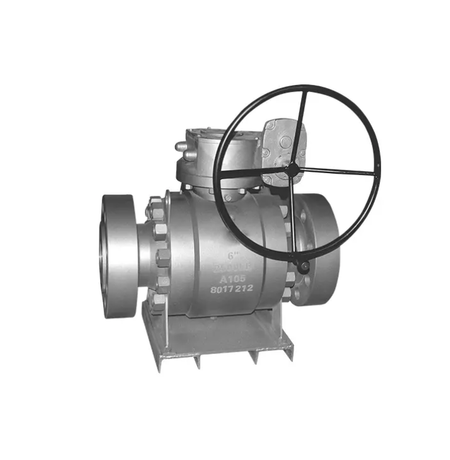

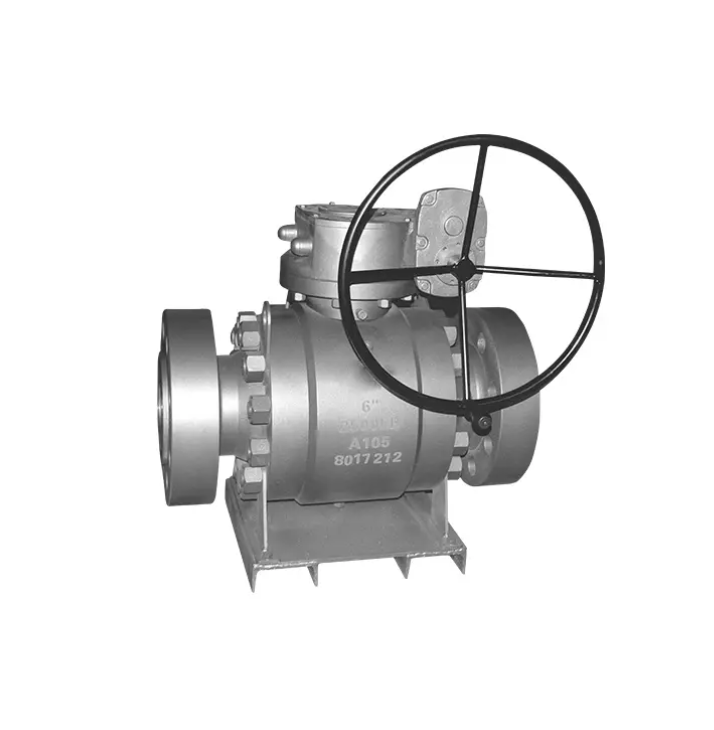

A: Consider factors like the fluid type, pressure, temperature, and required flow control. For high pressure, use trunnion ball valves. For easy maintenance, top-entry or split body valves are preferred.
