Check valves play a crucial role in fluid systems, ensuring that liquids and gases only flow in one direction. Without them, pumps, pipelines, and other equipment can be damaged by backflow. In this post, we'll explore the different types of check valves, how they function, and where they're used.
Check valves are designed to automatically block reverse flow, a critical function in fluid systems. When fluid starts to flow in the wrong direction, the valve closes, preventing it from reaching sensitive equipment like pumps, compressors, and motors. This backflow prevention helps avoid costly damage to equipment, keeps systems running smoothly, and ensures the integrity of the entire fluid network. In systems where contamination is a concern, such as pharmaceutical or food processing, preventing backflow is crucial for product quality and safety.
Check valves are vital for maintaining the efficiency of fluid systems. They prevent pressure loss by ensuring that fluid does not flow back through the system. This function helps maintain consistent pressure and fluid motion, which is critical in systems that rely on precise pressure control, such as HVAC, chemical processes, and oil pipelines. When backflow is prevented, the system runs more efficiently, reducing the need for pumps to work harder and preventing energy loss, which in turn leads to cost savings and smoother operations.
Water hammer, a sudden and potentially damaging pressure surge caused by rapid flow changes, can be prevented by using check valves. These valves, particularly non-slam check valves, are designed to close gradually, preventing the violent shock waves that occur when the valve slams shut too quickly. Spring-loaded or weight-assisted mechanisms inside check valves ensure that the valve closes slowly and smoothly. This prevents pressure spikes, protecting the system's components and ensuring long-term durability of the pipes and equipment.
Check valves operate automatically, meaning they don't require external power or manual intervention to function. They open and close based on fluid flow and pressure changes, making them an ideal solution for systems where consistent, reliable operation is needed without constant monitoring. Their self-actuated nature reduces the complexity of system design and minimizes the need for complex control systems, making them both cost-effective and low-maintenance. This autonomy makes check valves essential in industries where systems must operate 24/7, such as water treatment and oil and gas pipelines.

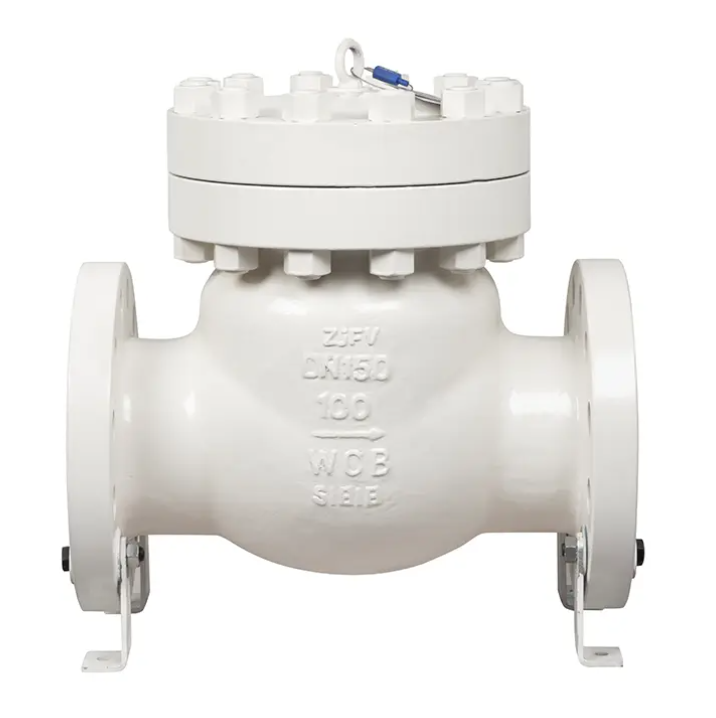

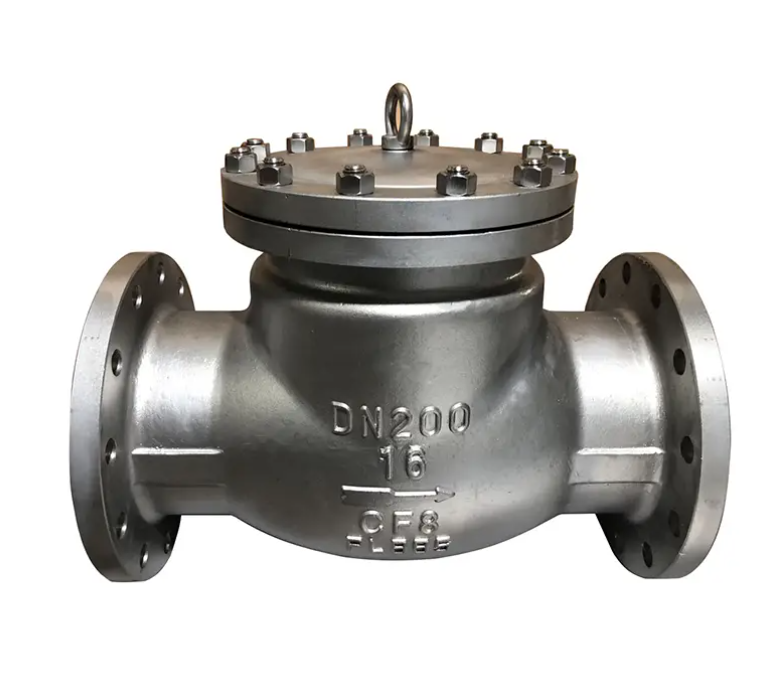

Swing check valves are one of the most commonly used check valves in fluid systems. They have a disc that swings open when fluid flows in the correct direction, and automatically swings shut when flow stops or reverses, effectively preventing backflow. These valves are often used in applications like drainage systems, irrigation, and water supply because they allow high flow rates and minimize pressure loss. They are ideal for systems where the fluid pressure is high, but the flow direction is relatively stable.
Lift check valves operate by lifting a disc or ball vertically when fluid flows in the intended direction. If the flow reverses, gravity or spring action pushes the disc back into the seat, stopping backflow. These valves are typically used in vertical and horizontal pipe systems and are highly effective in high-pressure applications such as steam lines, boiler feedwater systems, and industrial pipelines. Lift check valves provide reliable backflow prevention and are well-suited for systems with higher pressure differentials.
Ball check valves use a spherical ball that moves within the valve body to control the flow of fluid. When fluid flows forward, the ball lifts off the seat, allowing fluid to pass. If the flow reverses, the ball is pushed back onto the seat, preventing backflow. These valves are particularly effective in vertical pipelines or systems handling slurries, wastewater, or sewage. The ball design ensures a tight seal even in challenging conditions where other valve types might struggle, providing reliable backflow protection.
Tilting disc check valves are designed with a disc that tilts rather than swings. The tilting mechanism allows these valves to operate effectively in high-velocity fluid systems. They provide a smooth, gradual closure, reducing the chances of water hammer and pressure surges. The design also minimizes pressure drops, making them suitable for applications where maintaining a stable flow rate is crucial. Common uses include power plants, petrochemical industries, and high-flow water distribution systems.
Non-slam check valves are engineered to prevent water hammer by closing slowly and softly. When backflow occurs, the valve disc closes smoothly to avoid sudden pressure surges, protecting the system from potential damage. These valves are particularly useful in HVAC systems, municipal water systems, and pumping stations where quick closure can lead to system stress and equipment failure. By preventing pressure surges, non-slam check valves help extend the life of the system and reduce maintenance costs.
Check valves are essential in pump systems, where they protect pumps from backflow. Without them, backflow can cause damage to the pump components, reduce efficiency, and even cause complete system failure. By ensuring that fluid only flows in one direction, check valves help maintain optimal performance in systems such as water supply, wastewater treatment, and chemical dosing systems. They help keep pumps running smoothly and efficiently, reducing wear and tear on the equipment.
In HVAC systems, check valves prevent reverse flow of refrigerants or heating/cooling fluids. This is particularly important in systems where contamination of fluids could cause performance issues or system failure. By keeping the fluid moving in the right direction, check valves ensure that systems maintain proper pressure, preventing damage and improving overall system efficiency. They are crucial in maintaining clean and uninterrupted flow within HVAC pipelines.
The oil and gas industry often operates under high pressures, and check valves play a critical role in these systems. They are used in pipelines to prevent reverse flow, which could potentially damage sensitive equipment and disrupt the flow of oil or gas. In high-pressure pipelines, check valves help maintain safety by ensuring that fluids are only moving in the correct direction, preventing costly and dangerous equipment failures.
Check valves are widely used in water treatment plants and irrigation systems to prevent backflow, ensuring that water doesn't flow back into the supply system or contaminate clean water sources. In municipal water supplies, they play a key role in backflow prevention, protecting infrastructure and ensuring water quality is maintained. By keeping unwanted contaminants out, check valves help protect the environment and keep systems running efficiently.
When selecting a check valve, the type of fluid plays a crucial role. The valve's material and design depend on whether the fluid is a liquid, gas, slurry, or corrosive chemical. For example, corrosive chemicals require valves made of materials like stainless steel or PVC to resist corrosion. In contrast, slurries need valves with designs that can handle the abrasive nature of solid particles in the fluid. Understanding the media type ensures that the valve will function properly and last longer in the system.
Each check valve must be rated to handle the specific pressures and flow rates of the system it's used in. The cracking pressure is an important factor, as it refers to the pressure required to open the valve. A check valve must be selected based on the system's expected flow velocity and pressure changes to avoid issues like leakage or valve failure. Choosing the right valve ensures that it opens and closes at the correct pressure, maintaining system efficiency and safety.
The materials used in check valves must be compatible with the operating environment. Stainless steel, brass, and PVC are common materials used, but the choice depends on the temperature, chemical exposure, and pressure conditions of the system. For instance, in high-temperature systems, metal valves are preferred for their durability, while plastic valves are used in less demanding applications. Selecting the correct material helps prevent valve degradation and ensures longevity.
Valve sizing is crucial to the proper function of the system. Pipe diameter, installation orientation (horizontal or vertical), and the available space all affect the valve selection. If the valve is too large, it may not close properly, leading to inefficiency. If it's too small, the system may experience high friction and flow resistance. Correct valve sizing and installation ensure smooth operation, prevent chattering, and reduce the risk of valve failure.
Check valves are essential for maintaining proper fluid flow direction and protecting systems from damage. They prevent backflow, ensure system efficiency, and extend equipment life. When selecting a check valve, consider your system's pressure, flow, and media type. For the best performance, consult with experts or manufacturers to choose the right valve for your needs. Welcome to Zhongjian Valve Consulting Products！
A: Yes, check valves can be used in both liquid and gas systems. The design may vary depending on the media type to handle specific pressures and flow conditions.
A: Non-slam check valves prevent water hammer by closing slowly. This reduces pressure surges, protecting the system from damage and ensuring smooth operation.
A: To prevent reverse flow, install check valves in the system. They automatically close when flow direction changes, ensuring fluid moves in one direction only.
A: Yes, certain check valves are designed with materials like stainless steel or PVC to resist corrosion and handle aggressive chemicals in various industrial applications.
