Are you struggling to choose between solenoid valves and ball valves? Both are essential in fluid systems, but how do you know which one is best for your application? This article aims to provide a clear comparison of these two valve types, helping you understand when and why to use each.
A solenoid valve is an electrically operated valve used to control fluid flow. The main components are a solenoid, valve body, and plunger. The solenoid creates a magnetic field when an electric current passes through it, which moves the plunger and opens or closes the valve. Solenoid valves are known for fast, precise on/off control.
Common materials used in solenoid valves include stainless steel, brass, and plastic. These materials ensure the valve works well with different fluids, providing durability and resistance to corrosion.

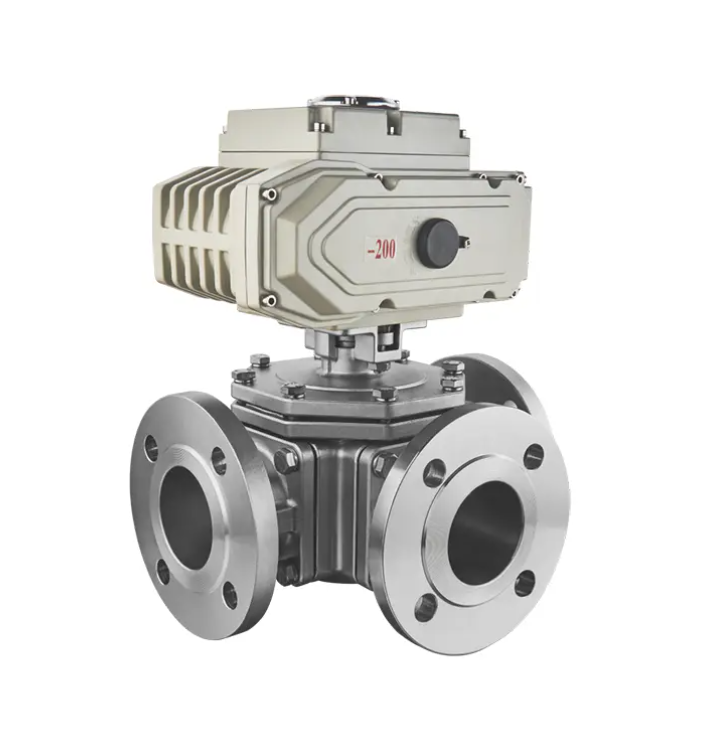

A ball valve is a flow control valve that uses a spherical ball with a hole through it to regulate fluid flow. The ball sits between two seats and is rotated 90 degrees by an actuator to either open or close the flow path. When the ball's hole is aligned with the pipe, fluid flows through; when rotated perpendicular, the flow is blocked.
Ball valves are typically made of stainless steel, PVC, and bronze. These materials are chosen based on the pressure and type of fluid the valve will control.
Solenoid valves operate using electricity and magnetic fields. When the current flows through the solenoid, a magnetic field is created, which moves the plunger to open or close the valve. This allows for quick, automated control.
Ball valves, on the other hand, can be operated manually, or through electric, pneumatic, or hydraulic actuators. This versatility makes them suitable for various control methods, depending on the needs of the system.
Solenoid valves are known for their fast response times, making them ideal for applications that require rapid on/off control. However, they have a relatively lower flow capacity compared to ball valves, which makes them best suited for smaller systems.
Ball valves are slower in response but offer higher flow capacity. Their design allows them to handle large volumes of fluid, making them ideal for high-flow applications like oil pipelines or water treatment systems.
Solenoid valves are generally more durable in systems with clean, low-particulate fluids. However, their lifespan can be limited if used with dirty or viscous fluids, as this can lead to clogging.
Ball valves are extremely durable and long-lasting, especially in high-pressure systems. They can handle particulate-laden fluids and operate well even after extended periods of inactivity, making them a go-to for demanding industrial applications.
Solenoid valves tend to be smaller and are available in configurations such as 2-way, 3-way, and 4-way. Their compact design allows for use in tight spaces and smaller pipelines.
Ball valves, in contrast, are available in larger sizes, often with full-bore configurations. These configurations help minimize pressure drops and allow for greater flow capacity, ideal for large-scale systems.
● Fast Switching: Solenoid valves are known for their rapid response times, making them highly suitable for automated systems. Whether it's for controlling gases, fluids, or air, their ability to switch on and off quickly makes them perfect for high-cycle applications, where speed and precision are critical.
● Compact Design: The small size of solenoid valves allows them to fit into compact or space-constrained systems. This makes them ideal for use in machines, equipment, and applications where space is limited, such as in small devices or tight piping systems.
● Cost-Effective: Compared to ball valves, solenoid valves are often more affordable, especially in low-pressure applications. This makes them an attractive choice for budget-conscious projects without compromising on performance. In situations where high flow capacity is not required, they provide a cost-efficient solution.
● Industrial Automation Systems: In industries where automation is key, solenoid valves control air, gases, or fluids with precise timing. They are widely used in pneumatic systems, robotics, and automated production lines, ensuring smooth, efficient operations.
● HVAC Systems: Solenoid valves regulate the flow of air and water in heating, ventilation, and air conditioning systems. They help manage temperature and humidity by providing precise control, ensuring optimal energy efficiency and comfort.
● Medical Equipment: Solenoid valves play a crucial role in medical equipment, especially in devices like ventilators and dialysis machines. Their ability to regulate the flow of fluids with high accuracy is essential for patient safety and treatment effectiveness.
● Irrigation Systems: In agriculture, solenoid valves are commonly used in automated sprinkler systems. These valves allow for efficient irrigation by controlling water flow automatically based on timers or moisture sensors, helping to conserve water and reduce labor.
● Clogging: One significant limitation of solenoid valves is their sensitivity to particulates. If the media flowing through the valve contains dirt, debris, or larger particles, it can cause clogging, leading to valve malfunction and reduced lifespan.
● Pressure Limitations: Solenoid valves are typically designed for low to medium-pressure systems. While they work well in most general applications, they are not suitable for high-pressure environments, such as in oil refineries or heavy industrial systems.
● Limited Flow Capacity: Due to their small size and compact design, solenoid valves usually have a lower flow rate compared to other valve types like ball valves. They are not suitable for high-volume flow applications and may struggle to maintain efficiency in large systems.
● High Flow Rate: Ball valves are known for their ability to handle large volumes of fluid. Their design allows for a higher flow rate, making them ideal for systems that require continuous, high-flow applications such as in industrial pipelines and water distribution networks.
● Versatility: These valves are highly versatile and can manage a wide range of media, including dirty, viscous, or particulate-laden fluids. The spherical ball design helps clear debris during operation, preventing blockages that could affect other valve types.
● Durability: Ball valves are built for long-lasting performance. Even in demanding applications, like high-pressure environments, ball valves maintain their integrity. Their robust design makes them reliable for extended periods, even in harsh conditions.
● Oil and Gas: In the oil and gas industry, ball valves are essential for managing high-pressure fluids. They are commonly used in pipelines to ensure safe, reliable control over the flow of crude oil, gas, and other chemicals.
● Water Treatment: Ball valves are widely used in water treatment plants to control water flow and pressure. Their ability to handle varying pressure levels and maintain efficiency makes them crucial for regulating water distribution.
● Fire Suppression Systems: Ball valves are also used in fire suppression systems, providing reliable shut-off capabilities for sprinkler systems. Their quick, positive shut-off helps prevent water waste while ensuring the system is ready when needed.
● Industrial Processing: Ball valves play a vital role in industrial processing, especially in environments that handle large volumes of chemicals or other fluids. Their design allows for seamless flow control in systems such as chemical processing plants, breweries, and manufacturing facilities.
● Slower Response: When actuated electrically, ball valves generally have a slower response time compared to solenoid valves. This delay can be a drawback in systems that require fast on/off switching.
● Bulkier Design: Ball valves are typically larger and bulkier than solenoid valves, requiring more space. Their size can be a challenge in compact systems where space efficiency is critical.
● Maintenance: While durable, ball valves are more complex to maintain and repair than solenoid valves. If something goes wrong, it may be more difficult to fix. The ball mechanism is also harder to replace, and issues may often require more intensive repair or replacement.
● Quick, Automated On/Off Control: Solenoid valves are ideal when you need fast, automated switching. Their quick on/off control is perfect for systems where time-sensitive actions are required, such as in automated industrial processes, air control systems, or fluid dispensing systems.
● Low to Medium Pressure Systems: These valves are designed for low to medium pressure applications. They are highly effective in environments that don't exceed typical pressure ranges. In high-pressure systems, solenoid valves may not function as efficiently or safely.
● Clean Media: Solenoid valves are best used with clean fluids like air or water that do not contain particulates. Since solenoid valves can clog easily when exposed to dirt or debris, they are not ideal for environments where the fluid contains solids or viscous materials.
● Need for Fail-Safe Design Options: If your system needs a fail-safe function, solenoid valves are an excellent choice. These valves often come with normally open or normally closed options, allowing for automatic fail-safe operation in case of power failure or system errors.
● Frequent Switching Cycles: Solenoid valves are designed to handle high-cycle applications. If your system requires frequent switching, such as in fluid dispensing or automated machines, these valves can reliably perform without wearing out quickly, ensuring efficiency over time.
● High-Pressure Systems: Ball valves are perfect for high-pressure applications due to their durable construction. If you are dealing with a system that operates under high pressure, like in gas or oil pipelines, ball valves are a better fit due to their ability to withstand the stress and maintain reliable performance.
● Large Flow Systems: Ball valves are built to handle large volumes of fluid. If your system demands high flow rates—such as in water treatment, cooling systems, or large industrial machinery—ball valves are the ideal choice due to their ability to manage large flows without significant pressure drops.
● Systems with Particulate Matter in the Fluid: Unlike solenoid valves, ball valves are better suited for applications where fluids contain particulates, dirt, or debris. Their ball mechanism helps clear out debris, preventing blockages and maintaining smooth operation even with dirty or abrasive fluids.
● Manual or Motorized Control: Ball valves offer flexibility in control. They can be operated manually or motorized, making them suitable for both small-scale systems where manual operation is enough and larger systems requiring automated control. Whether it's for a simple water control valve or a complex industrial process, ball valves provide the adaptability you need.
● Long-Term Reliability: Ball valves are known for their long lifespan and low maintenance requirements. They are designed for heavy-duty, continuous use and can withstand wear and tear better than solenoid valves. This makes them ideal for systems where long-term reliability and minimal maintenance are necessary, especially in industries like chemical processing, oil refining, or water management.
Solenoid valves are best for quick, automated control in low-pressure, clean fluid systems, offering compact size and cost-effectiveness. Ball valves, on the other hand, handle high-pressure, high-flow systems and can manage dirty fluids with greater durability and versatility. Depending on your project's specific needs, choose solenoid valves for efficiency and ball valves for reliability in more demanding applications. If you need further advice, don't hesitate to contact Zhongjian Valve to help you make the best choice for your needs.
A: Solenoid valves offer fast, automated on/off control, ideal for small systems with clean fluids. Ball valves handle high-pressure, high-flow, and dirty fluids with greater durability and versatility, making them suited for larger systems.
A: Solenoid valves are not ideal for dirty fluids as they can clog easily due to particulates. They work best with clean, low-viscosity fluids like air or water.
A: Solenoid valves are typically cheaper than ball valves, especially for low-flow, low-pressure applications. Ball valves, while more expensive, are cost-effective for high-flow and high-pressure environments.
A: You can use a solenoid valve in place of a ball valve for systems requiring quick on/off control and clean fluids. However, solenoid valves are not suitable for high-pressure or dirty fluid systems, where ball valves excel.
