In the complex world of industrial piping systems, the forged ball valve plays a critical role in ensuring fluid control, safety, and durability under extreme conditions. Unlike cast valves, forged ball valves are manufactured through a forging process, giving them superior strength, resistance to wear and tear, and a longer service life. But what exactly is a forged ball valve? Why is it so important across industries such as oil & gas, chemical processing, and power generation? Let’s dive deep into the intricacies of this essential mechanical component.

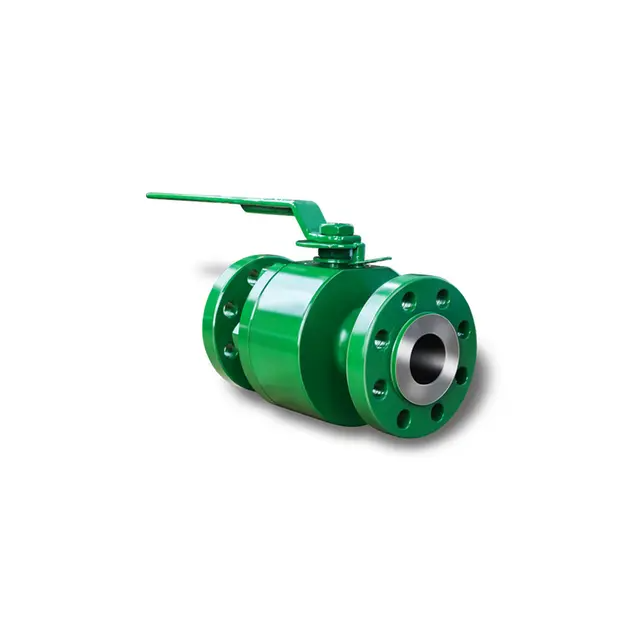

A forged ball valve is a mechanical device used to control the flow of liquid or gas within a pipeline. The valve features a spherical disc—referred to as the "ball"—which has a bore through its center. When the valve handle is turned, the ball rotates to align the bore with the pipeline, allowing flow. Conversely, turning the handle again rotates the bore perpendicular to the flow path, stopping the fluid movement.
The defining characteristic of forged ball valves is the manufacturing method: the components are made by forging metal under high pressure rather than casting molten metal into molds. This results in a denser and more uniform grain structure, significantly improving strength and pressure resistance. Forged ball valves are typically used in high-pressure and high-temperature applications where failure is not an option.
When it comes to valve production, the choice between forging and casting is crucial. While cast valves are easier and cheaper to manufacture, they often suffer from defects such as porosity, shrinkage, or inclusions. These flaws can compromise valve integrity over time.
In contrast, forged ball valves are:
Stronger and more durable due to their refined grain structure.
Less prone to cracking under thermal or mechanical stress.
Ideal for extreme environments, including deep-sea drilling or high-pressure steam systems.
More dimensionally accurate, which reduces leakage risks and improves long-term sealing performance.
Here’s a quick comparison in table format:
| Feature | Forged Ball Valve | Cast Ball Valve |
|---|---|---|
| Manufacturing Method | Hot forging under pressure | Molten metal casting |
| Grain Structure | Dense and uniform | Porous and inconsistent |
| Pressure Resistance | High | Moderate |
| Common Applications | High-risk, critical systems | Low to medium pressure systems |
| Cost | Higher initial cost | Lower initial cost |
| Durability | Very high | Moderate |

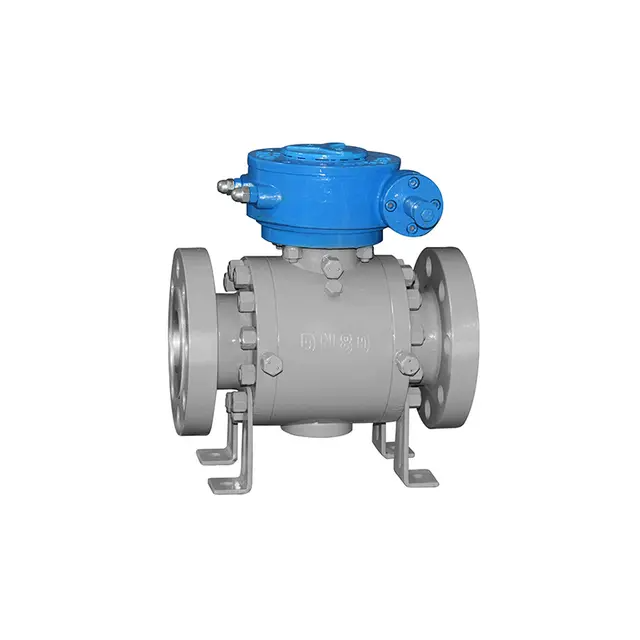

A forged ball valve is more than just a ball in a pipe. It comprises several integral parts that work together seamlessly to control flow. Each of these components contributes to the valve’s performance and reliability:
This is the primary pressure-containing shell made from forged steel. It houses all internal components and is responsible for withstanding high mechanical stresses. The forging process ensures this body is robust and resilient.
The heart of the valve, the ball, is also forged for strength and durability. It features a precisely machined hole (or bore) that allows flow when aligned with the pipeline.
These elements ensure a tight shutoff when the valve is closed. Materials like PTFE or metal are often used, depending on the application and required chemical resistance.
The stem connects the ball to the actuator or handle, allowing rotation. A forged stem enhances torque strength and reduces the risk of failure under operational stress.
Forged ball valves are indispensable in industries where safety, pressure, and precision are paramount. Let’s explore some of the key sectors:
In upstream, midstream, and downstream applications, forged ball valves ensure safe transport of crude oil, natural gas, and refined products under high pressures.
The chemical industry requires valves that can handle aggressive fluids and high temperatures. Forged ball valves deliver superior resistance to corrosion and thermal shock.
From nuclear to thermal plants, forged ball valves manage steam and cooling systems reliably, reducing the risk of catastrophic failure.
Forged ball valves are perfect for deep-water applications due to their ability to withstand pressure differentials and harsh saltwater environments.
Common materials include carbon steel, stainless steel, duplex steel, and alloy steels, chosen based on the operating environment and required corrosion resistance.
Yes, but they provide better long-term value through enhanced durability and reduced maintenance costs. The total cost of ownership is often lower.
Yes. With proper seat and stem design, forged ball valves can operate efficiently in cryogenic conditions, such as those used in liquefied natural gas (LNG) systems.
While forged ball valves are low maintenance, periodic inspection and lubrication are recommended to extend their life and ensure proper sealing.
Selecting the right forged ball valve requires careful consideration of several factors:
Operating Pressure and Temperature: Ensure the valve is rated for your system’s maximum limits.
Material Compatibility: Match valve materials to your media (e.g., corrosive fluids, high-temperature gases).
Valve Size and Port Design: Full port valves allow for maximum flow, while reduced port valves may be more economical for less critical flows.
Standards and Certifications: Look for valves meeting API, ASME, or ISO standards to ensure quality and compliance.
Consulting with a qualified valve engineer or supplier is recommended when specifying forged ball valves for critical applications.
To wrap it up, forged ball valves are the preferred choice in applications where strength, safety, and reliability are non-negotiable. Their unique manufacturing process results in a product that withstands the harshest industrial environments, offering peace of mind and long-term operational success.
Whether you're dealing with superheated steam, corrosive chemicals, or high-pressure hydrocarbons, a forged ball valve stands as the frontline guardian of your pipeline system. If you’re looking for resilience and performance without compromise, forged is the way to go.
