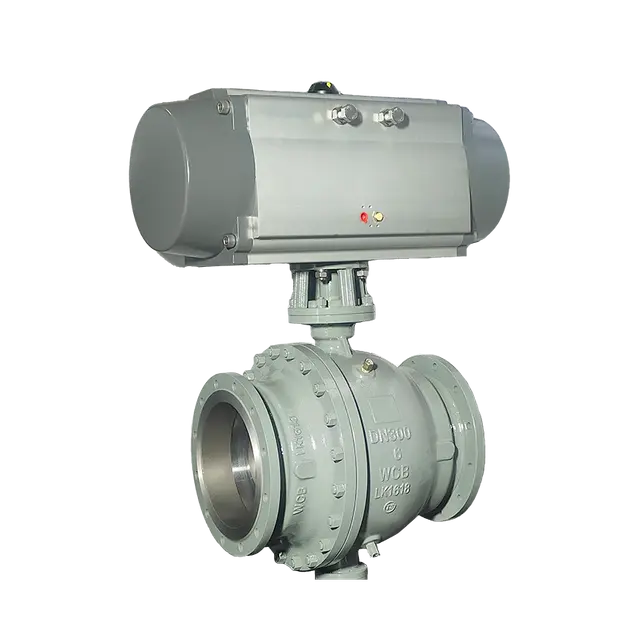

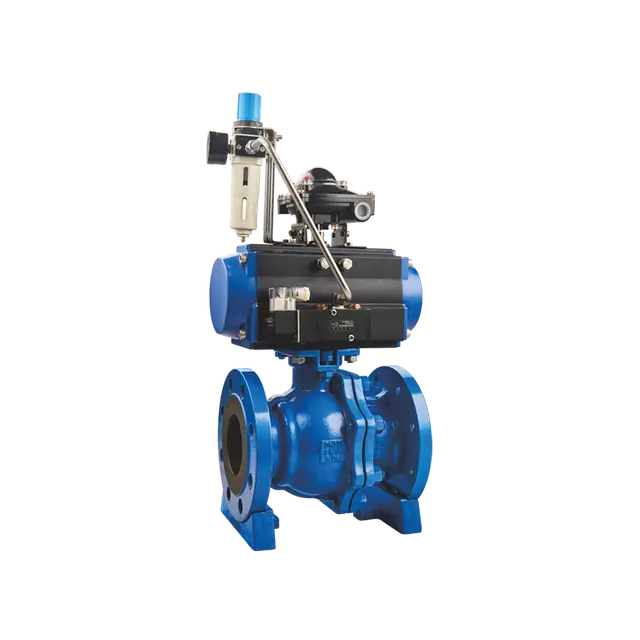

Pneumatic ball valves are a crucial component in modern industrial automation systems, known for their reliability, precision, and adaptability. But what exactly is a pneumatic ball valve? At its core, it is a type of quarter-turn valve that uses compressed air to rotate a ball with a hole through its center, allowing or blocking the flow of fluids or gases through a pipeline. Unlike manual or electric ball valves, pneumatic versions are powered by an actuator that responds to air pressure, offering fast and efficient on/off control.
This valve type is widely used in chemical processing, food and beverage, pharmaceuticals, water treatment, oil and gas, and many other sectors. Its popularity stems from its simple design, high durability, and capability to operate in hazardous or remote environments. Moreover, because it does not require electrical connections at the valve site, it's often the safer and more efficient option in explosive or flammable atmospheres.
The versatility of pneumatic ball valves goes beyond simple shutoff functions. Advanced systems can be integrated with positioners, sensors, and controllers, enabling precise regulation and automation of complex processes. Whether handling steam, slurry, gas, or corrosive liquids, the pneumatic ball valve continues to be the valve of choice for many engineers around the world.
The working principle of a pneumatic ball valve is straightforward yet technologically efficient. It consists of two primary components: the ball valve and the pneumatic actuator. The actuator receives pressurized air, which creates linear or rotary motion. In the case of a ball valve, this motion is rotary—typically 90 degrees—causing the ball inside to rotate and align (or misalign) the internal bore with the flow path.
When the bore is aligned with the flow, the medium passes through unimpeded. When rotated 90 degrees, the solid side of the ball blocks the passage, stopping the flow completely. The process is fast and energy-efficient, often completing the transition in less than a second, which is vital in automated or emergency shutdown systems.
There are two main types of pneumatic actuators used in ball valves: single-acting (spring-return) and double-acting. Single-acting actuators use air to open or close the valve and a spring to return it to its default position when the air is removed. Double-acting actuators, on the other hand, require air pressure to both open and close the valve, offering more control but requiring constant air supply. The choice between the two depends on system requirements such as safety, speed, and energy efficiency.
To fully grasp the functionality of a pneumatic ball valve, it helps to understand the primary components involved:
| Component | Function |
|---|---|
| Ball | Spherical element with a bore that rotates to allow/block flow |
| Valve Body | Encloses and supports all internal components, usually made of metal |
| Pneumatic Actuator | Converts air pressure into mechanical motion to rotate the ball |
| Stem | Connects the actuator to the ball and transfers torque |
| Seals and Seats | Ensure a tight, leak-proof seal around the ball and stem |
| Position Indicator | Provides a visual or electronic indication of valve position (open/closed) |
Each of these components plays a critical role in maintaining the integrity, performance, and safety of the valve. For instance, high-quality seals are necessary to prevent leakage, especially when handling toxic or high-pressure media. Similarly, a robust actuator ensures consistent operation even under fluctuating air pressure or adverse conditions.
Choosing a pneumatic ball valve offers several significant benefits, especially in industrial automation settings:
Speed of Operation: Pneumatic valves operate much faster than electric ones. This is crucial in emergency shutoff situations where every millisecond counts.
Fail-Safe Mechanism: Using spring-return actuators, pneumatic valves can be configured to automatically return to a safe position (open or closed) in the event of air supply loss.
Cost-Effective in Large Systems: In large-scale systems requiring multiple valves, centralized compressed air systems are often more economical than wiring electric actuators.
Explosion-Proof Nature: Pneumatic systems don’t involve sparks or electric current at the valve, making them ideal for flammable or explosive environments.
Durability: Fewer electronic parts mean less susceptibility to electrical failure or corrosion, especially in outdoor or wet applications.
These advantages make pneumatic ball valves a robust choice for industries where reliability and speed are paramount.
Pneumatic ball valves are widely deployed across many sectors due to their versatility and reliability:
Chemical and Petrochemical: Handling corrosive fluids and gases under high pressure.
Food and Beverage: Sanitary-grade valves for hygienic processes.
Water Treatment Plants: Automated control of flow and pressure in municipal and industrial systems.
Pharmaceutical: Clean-in-place (CIP) compatible designs for sterile applications.
HVAC Systems: Controlling chilled water, steam, and air flows.
Oil and Gas: Offshore platforms and refineries favor pneumatic actuation for its safety.
Each application imposes different demands—such as resistance to corrosion, high pressure, or strict hygiene—which is why the selection of materials and design features must be tailored to the specific use case.
Q1: Are pneumatic ball valves suitable for high-temperature applications?
A: Yes, provided they are made from appropriate materials like stainless steel and equipped with high-temperature seals. The actuator must also be rated for the operating temperature range.
Q2: What kind of maintenance is required?
A: Minimal maintenance is one of their key benefits. Periodic inspection for air leaks, seal integrity, and actuator performance is usually sufficient.
Q3: Can they be used for throttling flow?
A: Not ideally. Ball valves are designed for on/off control. Throttling can cause wear and reduce lifespan. If modulation is required, a different valve type like a globe or V-ball valve may be more suitable.
Q4: How long do pneumatic ball valves last?
A: With proper maintenance, they can last 10–15 years or more, depending on the application and environment.
Q5: Is a control system necessary?
A: For automated operation, yes. A control system that regulates the air pressure and signals the actuator is essential for precision.
Pneumatic ball valves continue to be a cornerstone of industrial automation and fluid control systems. Their blend of efficiency, safety, and mechanical simplicity makes them a preferred option for both simple shutoff applications and complex automated processes. As industries increasingly move towards smart manufacturing and IoT-enabled infrastructure, pneumatic systems are evolving with integrated sensors, wireless controls, and AI-enhanced diagnostics.
Understanding how a pneumatic ball valve works and where it fits in your operation can significantly enhance process reliability and safety. For engineers and plant managers alike, selecting the right valve isn’t just about specifications—it’s about ensuring a seamless, scalable, and future-ready fluid control strategy.
